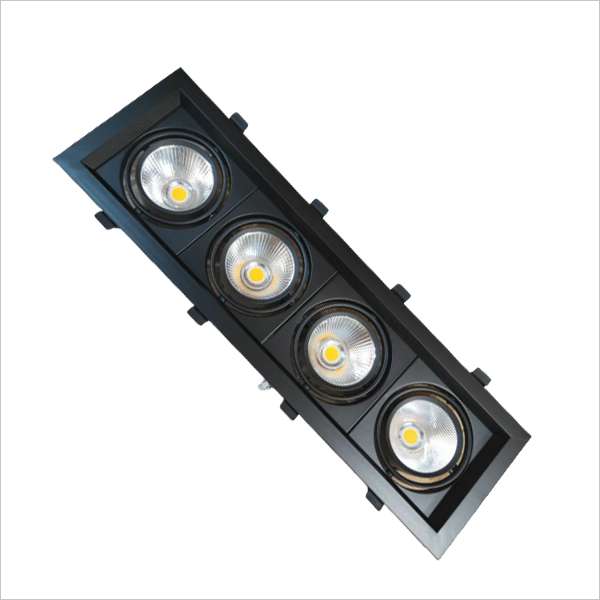

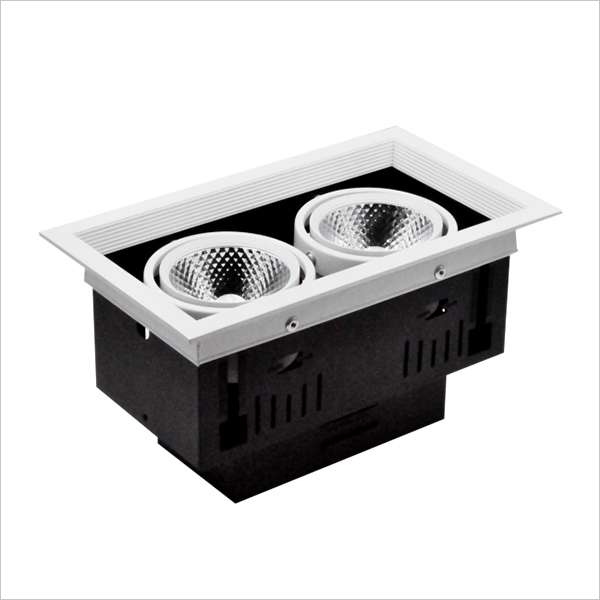

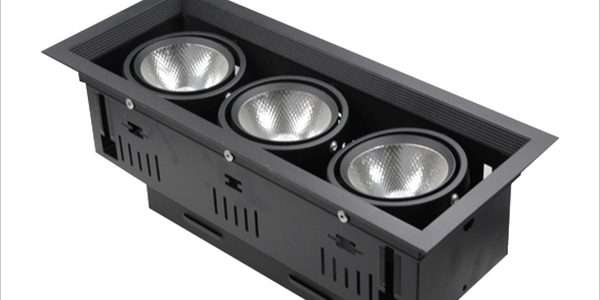

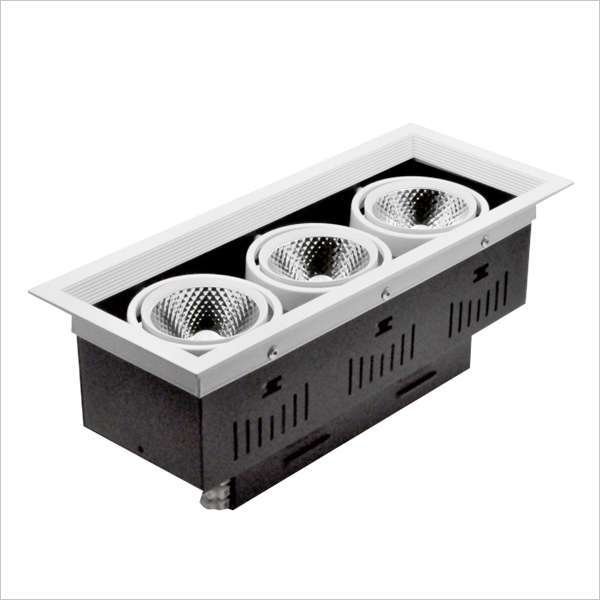

These Grille reflector LED downlights consume less power compared with conventional commercial lighting products. At the same time offering high light output, 50,000 + hours life, with excellent light stability and colour render.
The LED Downlight Grille lamp is ideally suited to shop lighting were a directional beam of light is required in multiple directions.
This series of LED grille downlights are designed as retrofit or new installations.They are suitable for commercial lighting such as retail stores,shops,supermarkets,offices,meeting rooms,etc.
- CREE COB light source,Ra80/Ra90.
- LIFUD/XZ-POWER/AD/LINKUAN drivers.
- Cold forging process heat-sink,high Alu purity,better heat dissipation.
- Adjustable body design,adustable beam angle 15deg.
- Paint baking surface,never fade,and anti-scratch.
- Triac,0/1-10V,DALI dimmable options are all available.
- Ease of installation and maintenance.
- Can work with motion sensors.
- Rated Life: 50,000 hrs.
- Limited Warranty: 3 years (5yrs and 7yrs optional).
Professional-grade LED Downlights
New universal driver supports TRIAC,ELV & 0-10V dimming.High end.Superior performance.
True colors.
ECORUN LED downlights have Absolute White optics, which are rated at 3 step MacAdam Ellipses, making fixture-to-fixture color output highly consistent. In addition, they are black body accurate, making color shift minimal.
Smooth and pleasing light.
The microprismatic diffusion lens optimizes lumen output and delivers smooth, uniform illumination that enhances any space.
Easy installation.
Butterfly brackets allow a variety of ways to secure for 1/4" to 1/2" bar stock, nailer bars (included with rough-in), conduit bar stock or c-channels (optional). EZ-Connector allows you to finish installation without any wiring. Ceiling clamps automatically open and clamp down on the ceiling for super easy installation.
IC rating
For ceilings with insulation, ECORUN comes with an optional insulation contact housing.
SPECIFICATION
Model No | ERDL-30W-A45 |
---|---|
Dimension | 180*180*H155mm Cutout:150*150mm |
LED Light Source/QTY | CREE COB light source |
Power | 30W |
Color Temp | 2700K/3000K/4000K/5000K/6000K |
Luminous (lm) | 3000-3300LM |
Lighting Effect | >100-110LM/W |
CRI | 80/90Ra |
P.F. | >0.95 |
Power Efficiency | >89% |
Input Voltage | AC85-265V, 50/60Hz |
Beam angle | 50° |
Work Temp | -20~60℃ |
Working Humidity | 10%-90% |
IP Rate | IP20 |
Main Material | New Private Die-mast Aluminum housing,clear glass cover |
Frame color | White surface housing,black heat-sink,clear glass cover |
Lifespan | More than 50,000hrs |
Warranty | 3 or 5 Years |
Certification | CE ROHS SAA FCC TUV ETL |
DIMENSION: MOUNTING:
DIMMING: CONTROL:
